Prefabrication of columns and reboilers

Prefabrication of columns and reboiler

Agreement term: 01.10.2019 - 10.03.2020

1. Prefabrication by IZOTECHNIK:
   Recycle Rectifier Reboiler E-946
   Heads Column T-961
   Heads Column Reboiler #2 E-963
   Tails Tower T-967

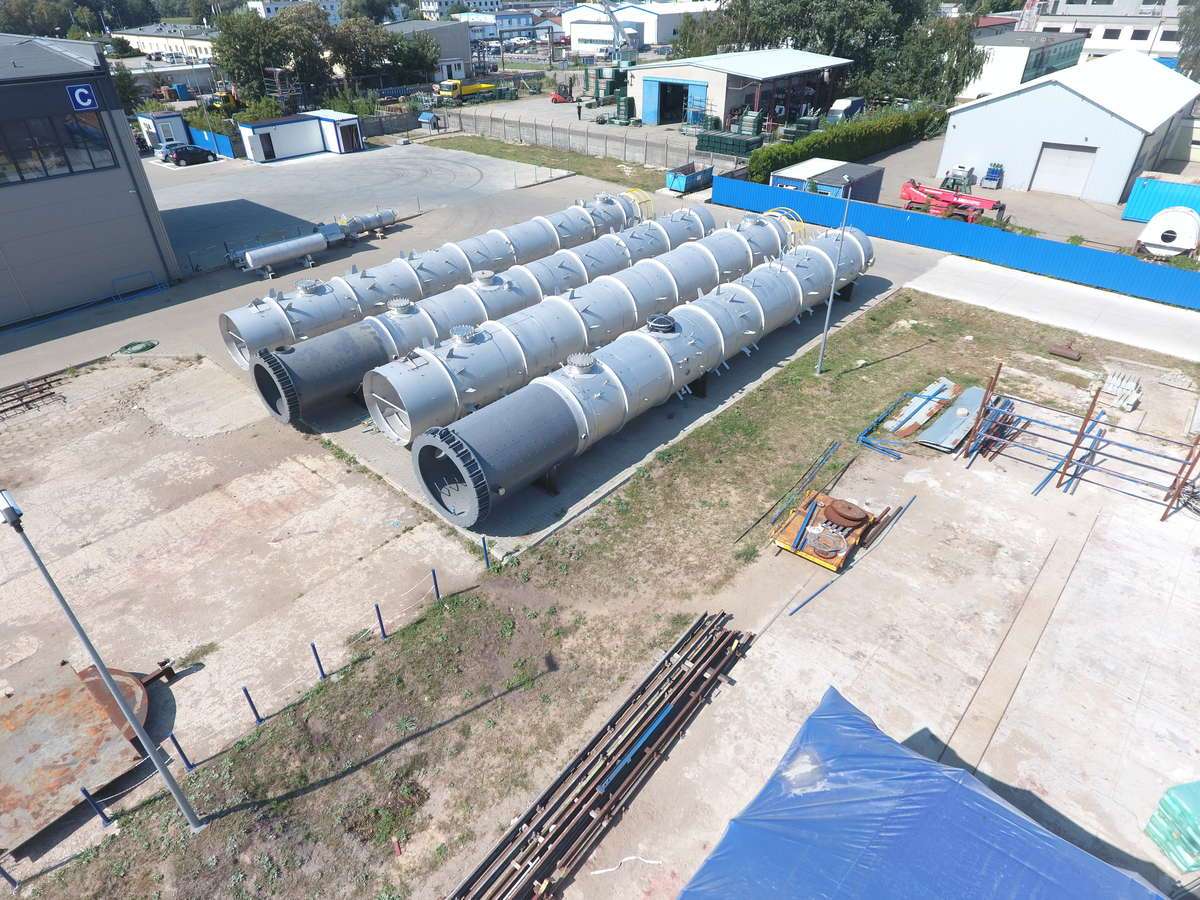

2. Prefabrication by Spomasz:
   Beer Stripper #1 T-507B
   Beer Stripper #2 T-516B
   Recycle Rectifier T-944
   Heads Column Reboiler #1 E-962
   Tails Tower Reboilers E-968A, B


   All devices were assembled by IZOTECHNIK.


   1. The seating on the foundation and the erection of Columns T-507B and T516B including the fixing of platforms, ladders and trays in each column.
      Diameter 2100, height 30.3m/ Diameter 2100, height 30.3m, material 1.4307

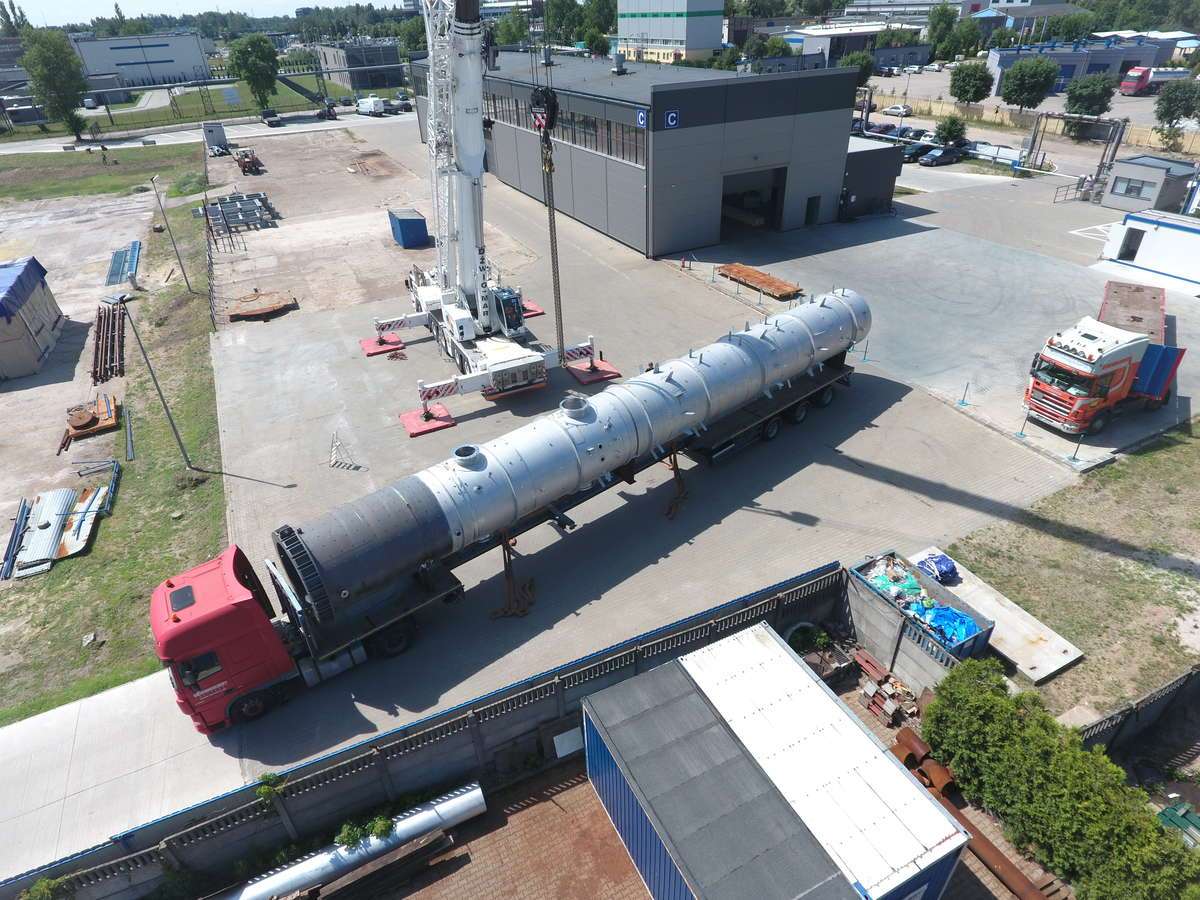

      The columns were delivered as whole, the platforms were fixed while the columns remained in the horizontal position, the columns were seated on the foundation, the trays were fixed in the columns; acceptance by KATZEN

   2. The seating on the foundation and the erection of Column T-944 and Reboiler E-946 including the fixing of platforms and ladders in column T-944.
      Diameter 1200, height 22.6m, material 1.4307;

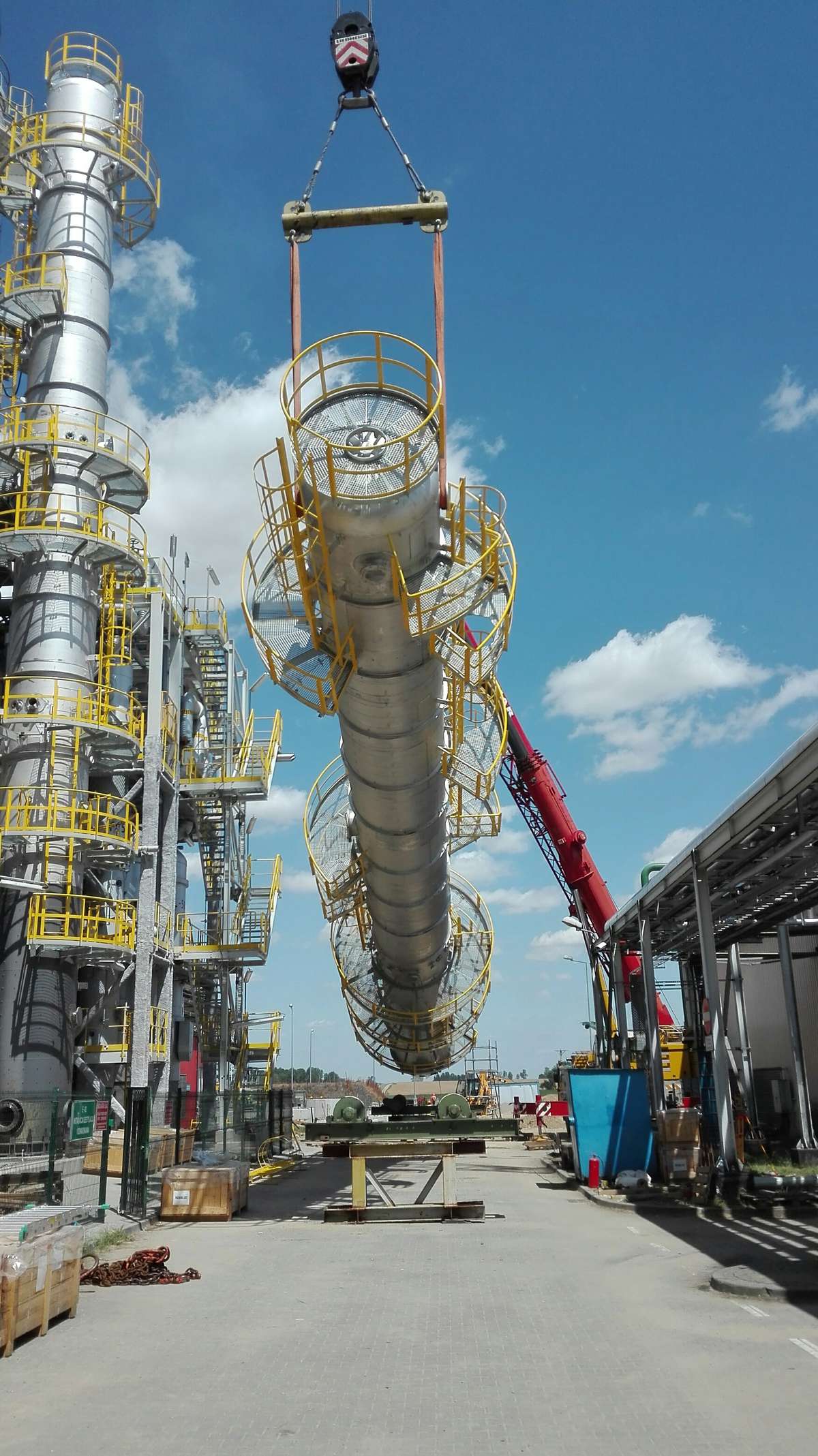

      The column was delivered as whole, the platforms were fixed while the column was in the vertical position, the column was seated on the foundation, the trays were fixed in the column; acceptance by KATZEN

   3. The seating on the foundation adnd the erection of Columns: T-961,T-967 and Reboilers E-962;E-963,E-968A/B including the fixing of platforms and ladders in columns T-961,T-967.
      Średnica 2200 wysokość około 50m / Średnica 2500 wysokość około 50 m materiał 1.4307

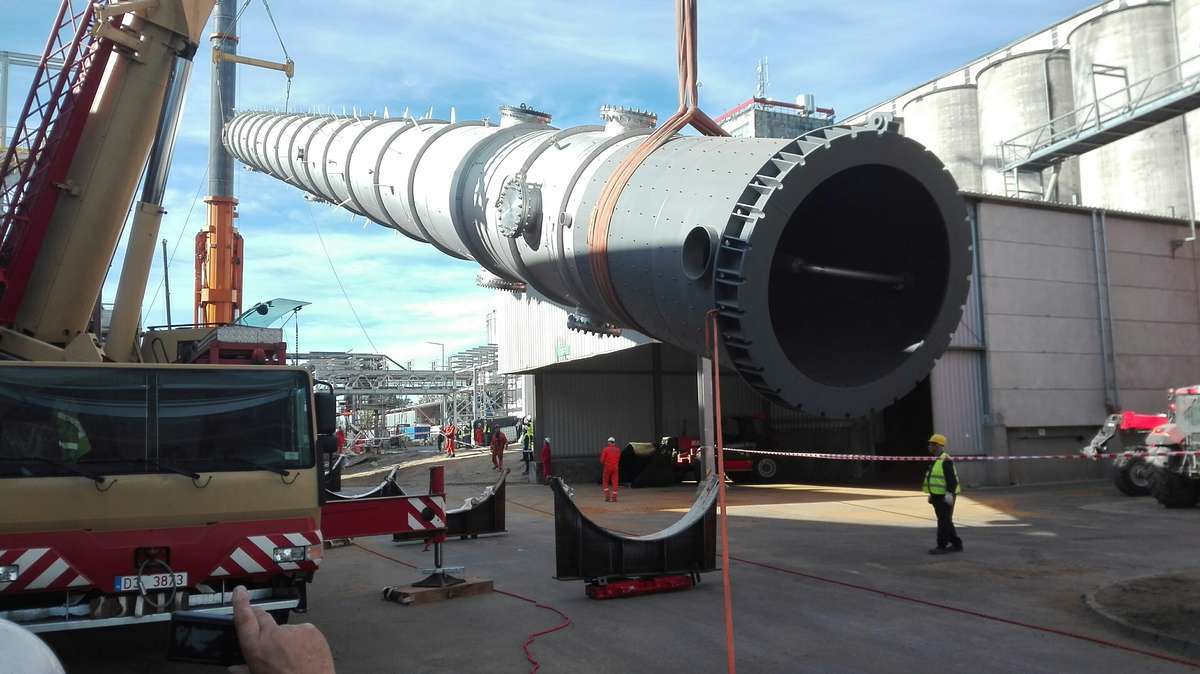

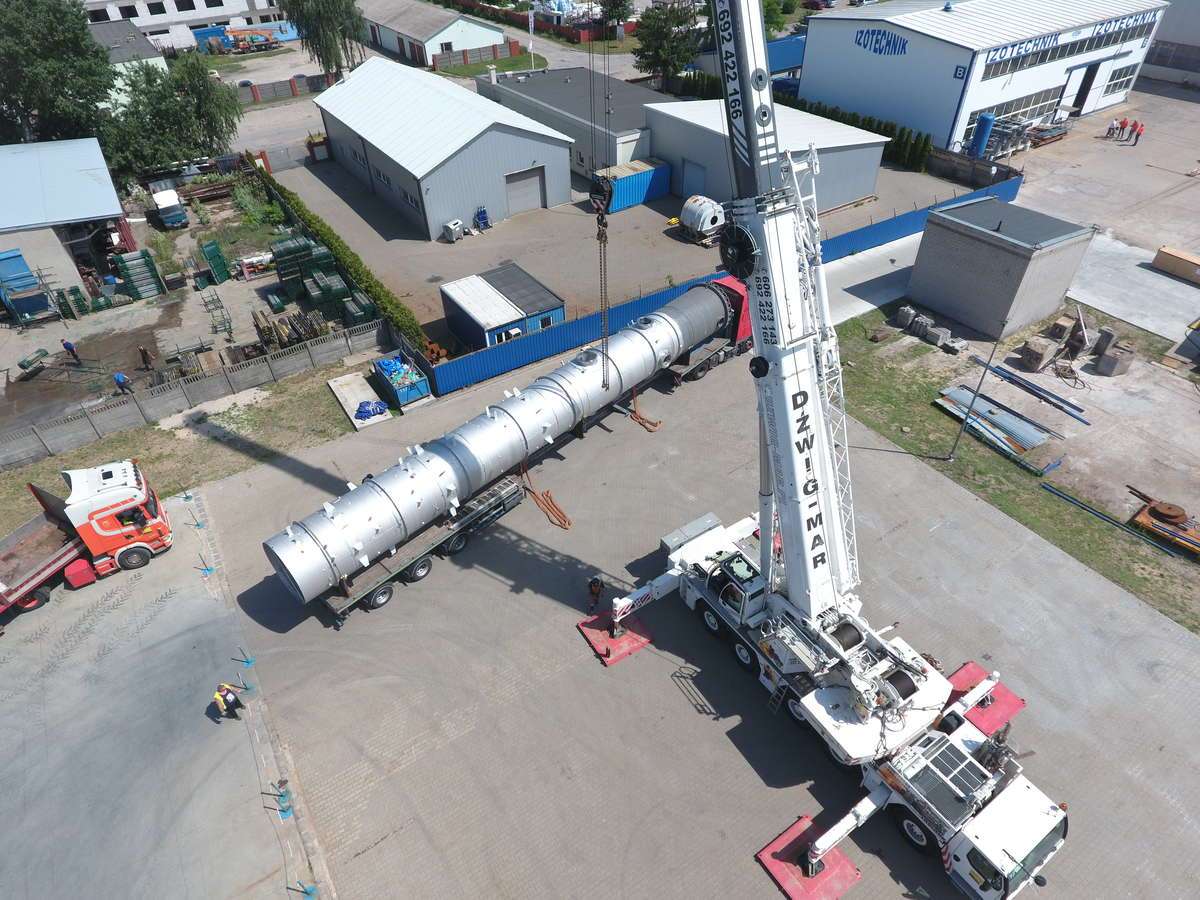

      The column was delivered in two parts; The assembly conducted in the horizontal position; The pressure test conducted in the horizontal position; The column was transported to its target location; The platforms were fixed after the column had been seated and the same was performed for the other column; the trays were fixed in the columns; acceptance by KATZEN
